If your vehicle’s check engine light just came on and your OBD-II scanner displays the P0430 code, don’t panic. You’re not alone, and this is a fairly common issue that many car owners face. But what exactly does it mean? Should you continue driving? And more importantly, how do you fix it without breaking the bank? In this comprehensive 2025 guide, we’ll break down everything you need to know about the P0430 code—what it means, its causes, symptoms, repair options, and prevention tips.

Table of Contents

What Does P0430 Mean? – Catalyst System Efficiency Below Threshold (Bank 2)

Let’s break it down in everyday terms: P0430 is an OBD-II diagnostic trouble code that tells you something is out of whack in your emissions control system—specifically with the catalytic converter on Bank 2 of your engine.

“Catalyst System Efficiency Below Threshold” means the on-board computer (ECU or PCM) has detected that the catalytic converter isn’t doing its job as effectively as it should. Your car constantly measures how well the catalyst is converting harmful exhaust emissions (like carbon monoxide and nitrogen oxides) into less harmful substances.
The term “Bank 2” denotes the side of the engine opposite cylinder #1. In a V-style engine, that’s the passenger or driver side depending on your vehicle design. Inline engines, which have just one bank, still trigger this code but it’s just referring to that single setup .

How the Car Decides It’s a P0430

Your vehicle has two oxygen sensors around the catalytic converter on each bank:

The upstream O₂ sensor monitors raw exhaust as it exits the engine.
The downstream O₂ sensor checks emissions after they pass through the catalytic converter.

The ECU expects the downstream sensor to show more stable, cleaner exhaust readings than the upstream one. If its data doesn’t align with the factory-defined “efficiency threshold,” the ECU triggers the P0430 code.

Why It Matters

Engaging the check engine light and logging this code means your vehicle is underperforming in controlling pollution, which can lead to higher emissions, failed inspections, and even long‑term damage if ignored.
Even though it’s a non-emergency code, it’s not something to ignore. Immediate fixes might be simple, but as time goes on, you risk getting into costly repairs—or worse, failing an emissions test .

In a Nutshell

P0430 = catalytic converter on Bank 2 is underperforming.
Bank 2 is the side of the engine opposite cylinder #1.
Your car flags this by comparing readings from upstream vs. downstream O₂ sensors.
The result? A check engine light, dwindling emissions control, and a signal that it’s time for diagnosis.

How’s that sound? If you’d like, I can explain how mechanics pinpoint whether the issue is sensor-related, a leak, or the catalytic converter itself—and how they confirm it’s specifically Bank 2.

Top Symptoms of a P0430 Code

You know that sinking feeling when your Check Engine Light (CEL) suddenly lights up? That’s almost always where it starts with a P0430 code. But beyond that, this code can present a few subtle—or sometimes dramatic—symptoms. Let’s break them down:

1. Check Engine Light Is On

This is the number one sign you’ll see: the CEL illuminates and stays on. It may be steady or occasionally flicker—either way, don’t ignore it.

2. Failed Emissions Test

Since P0430 means your catalytic converter isn’t working efficiently, your car is likely to fail emissions tests. That’s often how drivers first become aware of the issue.

3. Rotten Egg or Sulfur Smell

One of the most distinctive smells is a sulfur or rotten-egg odor coming from your exhaust. That’s the smell of unprocessed hydrogen sulfide, a good indicator your cat converter isn’t doing its job . It might start faintly but get stronger if left unchecked.

4. Reduced Engine Power & Sluggish Acceleration

The catalytic converter can slowly clog or lose efficiency. When that happens, you’ll notice that your car doesn’t accelerate as quickly or respond as well when you hit the gas.

5. Poor Fuel Economy

A clogged cat or inefficient exhaust flow throws off your engine balance, which often shows up as more frequent trips to the gas station. Decreased MPG is a classic symptom .

6. Rough Idle or Slight Misfire Feel

While not as common as the others, some drivers say their car idles rough or feels slightly jerky at low RPMs, particularly when cold .

7. Unusual Noises—Rattling or Hissing

In rare situations, your catalytic converter may break down internally and give off rattling noises. Exhaust leaks, meanwhile, can cause hissing or ticking sounds.

Putting It All Together

CEL & Failed Emissions? That’s a red flag.
Rotten egg smell? Your nose just picked up what your sensors did.
Drivability issues or odd sounds? The problem might be getting physical.

The kicker? Many people don’t notice symptoms beyond the Check Engine light, especially in early stages. That’s why immediate diagnostics are important. Even if all you have is the CEL and a failed emissions test—start investigating sooner rather than later.

Bottom line: with a P0430 code, your car is telling you: “Something’s off with my catalytic converter on Bank 2.” Beyond just the warning light, pay attention to how your car smells, drives, and performs—the sooner you catch it, the easier (and cheaper) it is to fix.

Primary Causes Behind the P0430 Code

1. Failing or Degraded Catalytic Converter

This is the top culprit. The catalytic converter’s job is to clean up exhaust by transforming pollutants into safer gases. Over time, the internal honeycomb structure can wear out, become clogged, or physically break down—especially after years of exposure to high heat and contaminants. Once it can’t perform efficiently, the downstream oxygen sensor sees almost identical readings to the upstream one and your ECU sets a P0430 fault.

In simpler terms: your exhaust system tells on itself. When the converter fails, it stops doing its job—and that’s exactly how the P0430 code gets triggered.

2. Faulty O₂ Sensors

You have two oxygen sensors in this bank—one before (upstream) and one after (downstream) the catalytic converter. They monitor oxygen levels to check if the converter is working properly:

If the upstream one is sloppy or slow, the downstream sensor might falsely look like the converter is underperforming.
If the downstream sensor is bad, it might give inaccurate data, triggering P0430.
Rusty wiring, connector issues, internal sensor failure, or simple age-related sluggishness can all play a role.

3. Exhaust Leaks (Especially Upstream of the Converter)

Small cracks or holes in the exhaust manifold, gasket seals, or pipes before the converter can let extra air in. That fresh oxygen confuses the upstream O₂ sensor, making it look like the catalytic converter isn’t working. Even a tiny leak can trick your ECU into thinking there’s a bigger issue.

In simple terms: leaks mess with readings, which means the cats get falsely accused.

4. Engine Misfires or Rich Fuel Mixtures

When your engine misfires—or burns fuel inefficiently (rich) or too lean—it can release unburned fuel into the exhaust. This overheats or clogs the catalytic converter. Over time, this abuse degrades the converter’s internal parts and crashes its efficiency meter.

Common triggers:

Worn spark plugs or coils
Dirty fuel injectors or poor ECU adjustments
Faulty mass air flow or O₂ sensors skewing fuel ratios

5. Contaminants: Oil or Coolant Intrusion

If oil or coolant leaks into the combustion chamber (due to valve seal or head gasket failures), they end up burning and passing through the converter. This gunk fouls the catalyst, reducing its ability to function and triggering that dreaded code.

6. Old or Damaged Wiring & Connectors

Even if all the components are sound, damaged wiring can corrupt sensor signals. By the time the ECU sees the scrambled data, it may think the catalytic converter isn’t doing its job—even if it actually is .

7. ECU Software Glitches or Outdated Programming

Believe it or not, in rare cases, a software bug in the engine control unit (ECU) can result in false P0430 triggers. Some models even get official ECU updates from dealers to fix such issues.

8. Less Common Causes

Other possible contributors include:

Bad catalytic converter placement (e.g., swapped converter orientation)
Use of wrong fuel (like leaded gas in a converter designed for unleaded)
Worn fuel injectors or ignition timing issues (often seen on Chrysler models)

TL;DR — Why That P0430 Light Is On

Either:

The catalytic converter is failing, or
Something upstream or sensor-related is messing with the readings.

Before you rush to replace the converter, make sure you:

Rule out leaking exhaust
Test both O₂ sensors and inspect wiring
Check for misfires or fuel system issues
Look for contamination signs

This detailed investigation will help you fix the real problem—saving you from unnecessary repairs, stress, and frustration.

How to Diagnose the P0430 Code Like a Pro

Step 1: Confirm and Scan for Related Codes

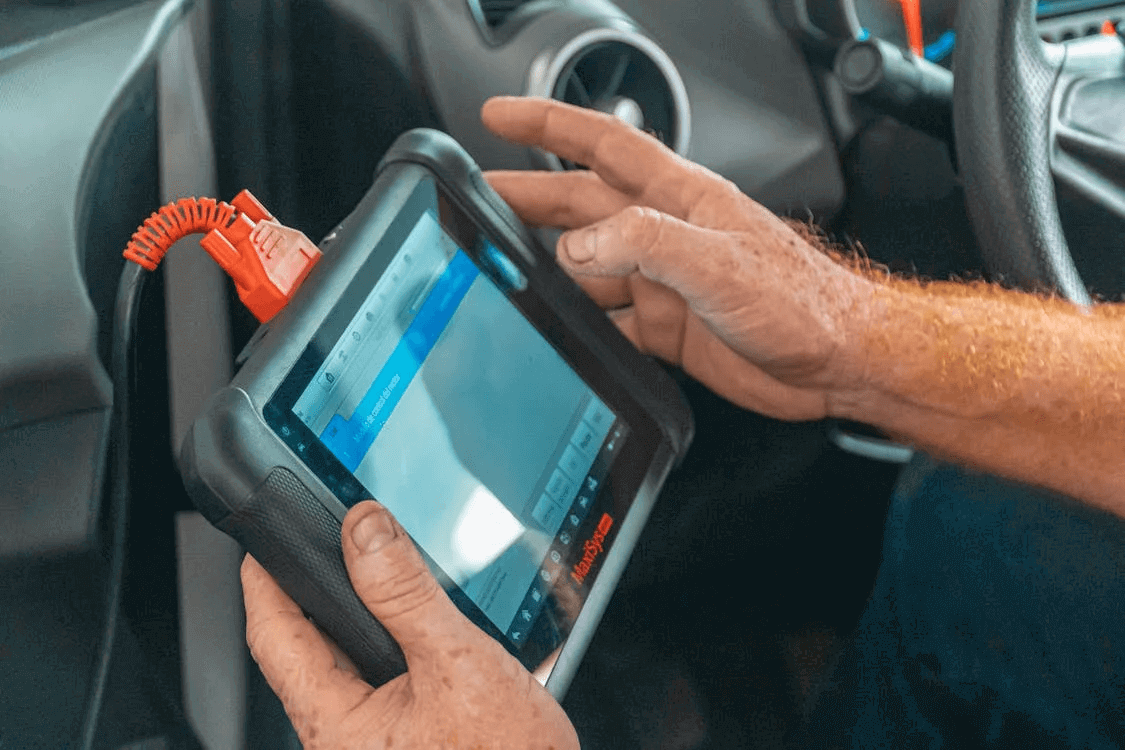

Plug in your OBD‑II scanner and confirm the P0430 code.
Check for additional codes like misfires (P0300 series), O₂ sensor faults (P0171/P0172), or catalytic efficiency (P0420). These could be the primary issue, and solving them might automatically clear P0430.

Step 2: Clear Codes & Conduct a Test Drive

Reset the scanner, then drive through a complete cycle (city + highway, about 10–15 minutes).
If P0430 reappears, it’s likely a persistent, not intermittent, issue .

Step 3: Visual Inspection

Get under the car and inspect:
- Catalytic converter for dents, rust, or heat-related bluing.
- Exhaust system (manifold, pipes, gaskets) for cracks or signs of leakage.
- O₂ sensor wiring and connectors for corrosion or damage.
Exhaust leaks upstream can cause skewed O₂ readings, leading to false positives.

Step 4: O₂ Sensor Data Analysis

Use live data from your scan tool to monitor both upstream (pre-cat) and downstream (post-cat) sensors during the drive.
Indicators of issues:
- Similar voltage patterns between sensors → catalyst isn’t cleaning the exhaust effectively.
- Normal range for wideband sensors: 0.1–0.9 V; reading stuck or fluctuating → sensor malfunction .

Step 5: Temperature Differential Test

Let the engine fully warm up and use an infrared (IR) thermometer.
Measure temps at the inlet and outlet of the catalytic converter.
A healthy converter shows about 100 °F higher temperature at the outlet; little or no difference suggests efficiency loss.

Step 6: Back Pressure / Flow Test

High back pressure could indicate a clogged converter.
With a pressure gauge in the upstream O₂ sensor port:
- At idle: <1.5 psi
- At 2,500 RPM: <3 psi.

Step 7: Engine Performance & Fuel Trim Checks

Review misfire counts in your OBD tool—frequent misfires damage the cat over time.
Examine short-term and long-term fuel trims: anything beyond ±25% suggests air-fuel imbalance from leaks or injector issues.

Step 8: Wiring and Harness Integrity

Carefully inspect O₂ sensor wiring harnesses, looking for burn, frays, corrosion, or loose pins .
Don’t forget to check connectors, as even corrosion can send faulty signals .

Step 9: Review TSBs & ECM Updates

Search your make/model/year for Technical Service Bulletins (TSBs).
Car manufacturers sometimes release ECM software updates to prevent false codes.

Step 10: Decide What to Fix

If everything checks out but the converter temp differential, backpressure, or sensor data indicates inefficiency—you’ll likely need a catalytic converter replacement.
If O₂ sensors are faulty and drivers to abnormal values, replace them only if confirmed—they’re rarely the root cause.
If misfires or fuel trim issues are present, resolve them first—you may fix the code without touching the converter.

Step 11: Post-Repair Testing

After repairs, clear all codes, perform a full test drive, and recheck live O₂ data.
Ensure drivability readiness monitors have reset—no P0430 and ready status in emissions tests means success.

Pro Tips

Avoid “parts swapping”—only replace sensors or converters after diagnosis, and never solely rely on additives or temporary “quick fixes” .
Keep a repair log with scan data, temps, and pressure readings. It helps if you end up with a shop or warranty claim.

In summary:
Diagnosing P0430 like a pro means combining clean scan data, smart physical inspections, and targeted tests—from O₂ sensor readings to pressure and temperature checks. Skip the guesswork, fix the root interruptor, and you’ll save time and money in the long run—and likely avoid an unnecessary catalytic converter replacement.

Effective Fixes & Repair Options

When your vehicle throws the P0430 code, it’s basically telling you that Bank 2’s catalytic converter isn’t doing its job properly. But remember: jumping straight to replacing the converter can be costly—so let’s go step by step to find the smartest and most effective solution.

1. Thorough Diagnosis Before Repair

Why this matters: Simply replacing the catalytic converter without pinpointing the underlying issue is like putting a Band‑Aid on a broken bone. It might mask the problem—but it won’t fix it. In many cases, the root cause is something that actually harmed the converter in the first place (engine misfires, leaks, sensor failures, etc.)

What to do:

Use an OBD-II scan tool to check for any accompanying codes—look out particularly for misfires, fuel trim issues, or O₂ sensor faults.
Review real-time O₂‑sensor data: If the downstream sensor mirrors the upstream one too closely, the converter isn’t scrubbing exhaust correctly.
Check fuel trims—long-term trims over ±25% indicate poor combustion and potentially excess raw fuel entering the converter.
Thoroughly inspect for exhaust leaks, especially before the catalytic converter, which can create false sensor readings.

2. Fix Common Culprits First

Target these potential issues before replacing anything major:

Exhaust leaks upstream
A simple hole or cracked manifold can trick your downstream O₂ sensor into thinking the converter isn’t working—when it actually is.
- Best fix: patch or replace damaged components and re-check with the OBD scanner.
Faulty oxygen sensors
Both upstream and downstream O₂ sensors must be functioning accurately. A bad sensor can falsify readings and trigger the code.
- Best fix: bench-test sensor voltage/readings or use a scan tool to confirm, then replace as needed.
Engine misfires or fuel system issues
Misfires or leaking injectors dump unburned fuel into the converter—causing overheating or contamination.
- Best fix: clean or swap injectors, service fuel filters or pumps, and repair ignition issues (spark plugs, coils).

3. Repair or Replace the Catalytic Converter

After ensuring upstream issues are resolved, if the converter itself is still underperforming:

Chemical cleaning
With mild build-up, fuel additives or professional “catalyst treatments” can restore up to 90 % efficiency.
- DIY tip: Add a catalytic converter cleaner to your fuel tank or have the converter soaked/steam-cleaned.
Converter replacement
When cleaning won’t cut it—typically with physical damage, melted substrate, or internal collapse—you’ll need a new unit .
- Options:
  - OEM or high-grade aftermarket unit
  - Universal converter (less expensive, but may require welding)
  - Dealership-installed unit (higher cost, direct fit)
- Pro tip: Ensure downstream sensors are reinstalled or replaced to avoid contaminating the new converter.

4. Time & Cost Overview (2025 Estimates)

Diagnosis: 1–2 hours of labor ($75–$150/hr)
O₂ sensor replacement: ~$150–$400
Exhaust leak repairs: ~$75–$300
Catalytic converter cleaning: $50–$150
Full converter replacement:
- Universal/aftermarket: $200–$500 + labor
- OEM/dealer-fit: $1,000–$2,500 or more, depending on vehicle make.

5. Final Confirmation & Clearing the Code

Once parts are repaired or replaced:

Clear the P0430 code using your OBD-II scanner.
Take a test drive, monitoring live O₂-sensor readings and ensuring the Check Engine light remains off.
Confirm improved fuel trims and stable emissions—your downstream O₂ sensor should no longer mimic the upstream one.

6. Why This Approach Matters (and Saves)

Lower cost: Fixing sensors or leaks is quick and inexpensive—far cheaper than wholesale converter replacement.
Longer-lasting outcome: You won’t be replacing converters repeatedly if the root cause isn’t addressed.
Emissions compliance: Restores proper vehicle function and helps pass environmental inspections.
Cleaner, safer driving: Eliminates sulfur smells and protects the environment.

In Plain English:

“Think of it like your car’s lungs—if the air intake (sensors, fuel mix) is off, the lungs (catalytic converter) can’t work right. Fix the breathing issues first!”

Quick Summary Table

Problem	Fix
Exhaust leaks	Patch or replace damaged pipe/manifold
O₂ sensors bad	Test and swap bad sensors
Misfires/fuel issues	Clean or replace injectors, plugs, coils
Mild converter clog	Use catalytic cleaner or soak unit
Converter physically damaged	Replace with OEM or quality aftermarket

In summary:

Fixing the P0430 code isn’t just about replacing the catalytic converter—it’s about a smart diagnosis-first strategy. Start small (sensors, leaks), only move to converters when everything else checks out. That way, you save money, avoid repeat repairs, and get your car running clean and compliant.

Expected Repair Costs

1. Catalytic Converter Replacement

Typical range: $400 – $3,000, including parts and labor.
- Mechanics estimate $1,250–$3,000 for a direct-fit converter.
- Some cite a mid-range cost of $1,500, particularly for more common vehicles .
- Aftermarket or universal converters at the lower end (~$400–$2,400) if labor is factored in.
DIY discount: Holding the part cost low (~$200–$400), but you’ll still pay for tools and spend time.

2. O₂ (Oxygen) Sensor Replacement

Per sensor costs:
- OEM sensors typically run $150–$550.
- Some report quotes of $150–$300 each .
- Banks are often changed in pairs, potentially doubling sensor costs.

3. Exhaust Leak Repair

Cost estimate: $100–$750 depending on the severity and weld-needed repairs.
- Basic weld patches: at the lower end (~$100–$200).
- Complex or hard-to-reach leaks could spike to $500+ .

4. Diagnostic Fees

Shop charge: $75 – $200 for scanning and freeze-frame data, varying by region.
- Diagnostic labor is often billed hourly (~$75–$150/hour).
- Standard installations typically take 1–2 hours.

5. Misfires, Tune‑Up, or Fuel‑System Fixes (If Applicable)

If engine misfires or fuel issues cause the P0430:
- Tune‑up costs: $200–$800, varying from basic spark plugs to full coil/injector replacements.
- Fuel injector cleaning/replacement can add to the cost .

Sample Repair Cost Scenarios

Scenario	Parts + Labor Cost Estimate
O₂ sensor only (one bank)	$300 – $1,100
Catalytic converter + sensors	$1,600 – $3,500+
Converter, sensors, exhaust leak	$1,700 – $4,000+
Minor repairs (diagnosis + leak)	$175 – $900
Full service (converter + tune‑up)	$1,800 – $4,500+

What Influences the Final Repair Bill?

Car make/model: Luxury, hybrid, or diesel vehicles often have more expensive parts and labor.
Labor rates: Dealership rates are typically 25–50% higher than independent shops.
OEM vs. aftermarket: OEM parts carry a premium; universal units or used cats cost less but may not be a long-term fix.
Warranty coverage: Catalytic converters may be covered for 8 years/80,000 miles—worth checking.
Complexity of repair: Multiple related issues (misfires, wiring, O₂ sensors) increase time and cost.

So, How Much Should You Expect?

If you’re dealing with just a sensor fix, plan for a few hundred dollars. But if a catalytic converter needs replacing, you’re looking at $1,000 to $3,000+, especially if labor is included or a luxury brand is involved. And if there’s an exhaust leak or tune-up needed, tack on another $200–$800.

Quick Recap:

500–2,500 USD is the most common range for full catalytic converter + labor replacement.
150–550 USD each for oxygen sensors.
100–750 USD to repair an exhaust leak.
Diagnostics: generally 75–200 USD .

Dealing with a P0430 code doesn’t have to be terrifying if you know what to expect:

Start with authorized diagnostics, then identify whether it’s a converter, sensor, or exhaust issue.
Request quotes from a few shops—dealers, independents, and even do-it-yourselfers if you’re handy.
Use dealer warranty coverage if applicable—you could save significantly.

Ask your mechanic to map out costs part by part. That way, you can make informed decisions—whether to replace OEM, try aftermarket, or patch and wait based on your budget and time frame.

Is It Safe to Drive with a P0430 Code?

In most cases, yes, your car will still drive with a P0430 code. However, that doesn’t mean you should ignore it. Continuing to drive with a faulty catalytic converter can:

Increase harmful emissions
Damage your engine or exhaust system over time
Lead to reduced fuel efficiency
Cause your vehicle to fail emissions tests

If your vehicle shows severe symptoms like loss of power or excessive fuel smell, it’s best to stop driving and seek professional help.

Prevention Tips to Avoid P0430 in the Future

While some causes of the P0430 code are unavoidable due to age and wear, you can reduce your chances of recurrence with the following preventive measures:

Use High-Quality Fuel: Low-quality gas can contain additives that leave deposits in the exhaust system.
Maintain Your Engine: Regular oil changes, air filter replacements, and spark plug maintenance keep combustion efficient.
Fix Engine Problems Quickly: Address misfires or sensor issues as soon as they appear.
Avoid Overloading Your Engine: Heavy towing or aggressive driving can overheat the catalytic converter.
Periodic Emissions Testing: Even if not required, occasional checks can help catch problems early.
Fuel Additives: Use catalytic converter cleaners occasionally to help dissolve carbon deposits.

Final Thoughts

The P0430 code might seem intimidating at first, especially when that check engine light pops up out of nowhere. But with the right knowledge and a step-by-step approach, it’s entirely manageable. Whether you’re a seasoned DIYer or someone who prefers the expertise of a mechanic, understanding the meaning, causes, and fixes for the P0430 code can save you time, money, and a lot of stress.

Address it promptly, follow preventive tips, and your vehicle will thank you—with better performance, cleaner emissions, and fewer surprise repairs down the road.
