If your Toyota’s check engine light suddenly comes on and your OBD2 scanner shows the P0441 code, don’t panic—you’re not alone. This code is one of the most common emissions-related issues in Toyota vehicles. In this guide, we’ll break down exactly what the Toyota P0441 code means, its symptoms, what causes it, and how to fix it. We’ll walk through everything step by step in plain language, so you know what to do next.

Table of Contents

What is the P0441 Code on a Toyota?

If your OBD‑II scanner reads P0441 for your Toyota, it isn’t describing a performance failure—it’s flagging an issue in your car’s EVAP (Evaporative Emission Control) system, specifically the purge flow. Essentially, you’ve got “Evaporative Emission Control System Incorrect Purge Flow.”

How the EVAP System Works

Think of your EVAP system as a closed‑loop vapor recycling plant:

Fuel vapors from the tank are routed into a charcoal canister, where they’re stored.
When the engine warms up under certain conditions, the purge valve opens.
A gentle vacuum draws vapors into the intake manifold, where they’re burned during combustion—so no odor, no waste, and no direct emissions.

Your Toyota’s PCM (Powertrain Control Module)—or ECM—monitors this system. It either senses actual flow (via a purge flow sensor) or infers it by watching pressure or vacuum patterns. If it waits too long or detects abnormal purge flow, it logs P0441.

Why Toyota, Specifically?

On Toyotas, the most common triggers include:

A loose or worn gas cap, causing vapors to escape and preventing the system from purging properly.
A malfunctioning purge valve (VSV)—it might be stuck shut or open, electrically failed, or clogged with charcoal dust.
Cracked/disconnected EVAP hoses, or a failing charcoal canister letting vapors escape.
Electrical glitches like shorts or open circuits to the purge valve solenoid or vacuum pressure sensors.

What the Code Tells You

It doesn’t rigidly define if purge flow is too high or too low—just that it’s outside expected parameters.
You might only notice the Check Engine Light—most drives report no other symptoms.
In rare cases, fuel smell, rough idle, or even a subtle drop in fuel economy might occur.
And yes—it can make your car fail an emissions test due to a compromised vapor‑capture system.

Severity & What to Do

The P0441 code is low severity—it won’t strand you—but it’s also not something to ignore, as it affects emissions compliance and could signal a leak in the EVAP system.
Since Toyotas are built with reliability in mind, it’s smart to start with the simplest fix—a tighten or replace the gas cap—before diving deeper.

TL;DR – In Everyday Terms

P0441 means “Your Toyota’s vapor recycling system isn’t purging like it should.”
It can be something as simple as a loose gas cap, or more involved like a faulty purge valve, damaged hoses, charcoal canister failure, or wiring glitch.
You’ll likely only see the check engine light, but it can hurt emissions and possibly fuel efficiency.
It’s not a critical failure, but it’s wise to inspect and fix—starting small and working outward.

Common Symptoms of a Toyota P0441 Code

When your Toyota throws the P0441 code, it’s usually the Check Engine Light (CEL) that first grabs your attention. Here’s what you might experience:

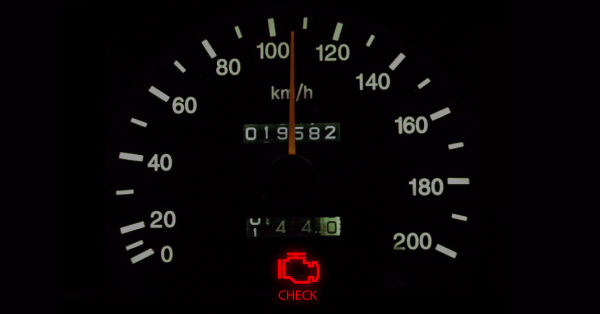

1. Check Engine Light is On

This is the most consistent symptom—your dashboard light illuminates because the PCM has detected improper purge flow in the EVAP system. In fact, the only indication many drivers get is this warning light, with no other apparent changes .

2. Rough or Erratic Idle

Some Toyotas may exhibit a rough idle or slight stalling, especially at startup. This happens when unwanted fuel vapors enter the intake system in a way that disrupts the air-fuel mixture . It’s often subtle—just enough to feel a bit “off.”

3. Occasional Fuel Smell

If there’s a leak in your EVAP system or a loose gas cap, you might smell gasoline inside or outside your vehicle. Don’t ignore that faint fuel odor—it usually points to improper vapor containment.

4. Decreased Fuel Efficiency

If fuel vapors aren’t being recycled properly into the engine, you may notice more frequent trips to the pump. While not dramatic, reduced mpg is a real possibility.

5. Fails Emissions Test

Because the EVAP system’s job is to stop hydrocarbons from escaping, a faulty purge flow will likely cause your vehicle to fail a smog check—especially in regions with strict regulations.

6. Sudden Startup Roughness After Refueling

Some users report more noticeable idle roughness or difficulty starting right after fueling. That’s because recent refueling saturates the charcoal canister, and until vapors purge properly, the engine may stumble or feel a bit rough.

Real-World Insights

Most Toyota owners only see the CEL, with little to no driving disturbance beyond that.
A rough idle or surging is rare—but can happen, particularly after gas-up.
A fuel smell is not extremely common, but when it does occur, it’s a telltale sign of EVAP leaks.

Why It Matters

Even if the car seems to drive fine, ignoring P0441 can lead to higher emissions, failed inspections, and wasted fuel. Plus, leaks in your EVAP system could get worse over time, potentially affecting other engine systems.

What You Can Do Now

Start with the simplest fix—check and tighten your gas cap.
Pay attention after refueling—if the CEL pops up then, EVAP system timing could be off.
Run a diagnostic scan or visit a shop for a smoke test to find leaks before bigger issues arise.

Top Causes for P0441 in Toyota Models

When your scanner flashes the dreaded Toyota P0441 Code, it’s signaling that the EVAP (Evaporative Emission Control) system isn’t purging fuel vapors properly. This malfunction can stem from several common—yet sometimes sneaky—issues.

1. Loose or Worn Gas Cap

This is by far the easiest fix—and surprisingly common. A loose or deteriorated gas cap can’t hold fuel vapors in the tank, causing the EVAP system to fail its purge-test cycle and trigger P0441. Even if it clicks shut, internal seals might be worn. It’s quick to check, and cheap to replace. If in doubt, swap it out.

2. Faulty Purge Valve (VSV)

The Vapor Switching Valve (VSV) controls vapor flow from the charcoal canister to the intake. When it’s stuck—either open or closed—or its solenoid fails, the purge flow won’t match expected levels. This is the most frequent cause of P0441 in Toyotas. Symptoms include inability to hold vacuum when closed, or no click when energized.

3. Cracked or Disconnected EVAP Hoses

Rubber hoses shrink, crack, or disconnect over time—especially under the heat of your engine bay. Even tiny leaks allow vapor to escape, disrupting pressure and triggering the code. A visual check may miss small cracks, so smoke-tests often find these culprits.

4. Damaged Charcoal Canister or Canister Closed Valve (CCV)

The charcoal canister traps vapor until it’s purged. If it’s cracked or clogged with fuel or debris (basic carbon dust), it won’t vent properly. In some Toyota models, it houses a Canister Closed Valve (CCV) that can also fail. When this happens, the system can’t control purge flow correctly.

5. Electrical Issues (Wiring or Connectors)

EVAP components rely on wiring to communicate with the ECM. Frayed wires, corroded connectors, or short circuits in the purge valve circuit can block proper operation. The ECM might detect incorrect purge flow simply because the purge valve never actually opened.

6. Faulty Fuel Tank or Vent Valve

While rarer, a cracked fuel tank, malfunctioning vent valve, or faulty tank pressure sensor (especially after a fuel pump replacement) can also cause incorrect EVAP purge flow and trip the P0441 code.

7. ECM or Purge Flow Sensor Glitch

Some Toyotas have a dedicated purge‑flow sensor or leak detection pump. Rarely, the sensor or PCM/ECM logic itself might glitch—reporting incorrect flow even if all parts are fine. But this is a less common scenario once other causes have been eliminated.

Drill-down Guide: Diagnosing the Cause

Start with the easy stuff – confirm the gas cap snaps on solidly and has no torn gasket.
Inspect hoses for obvious cracks or loose connections.
Bench-test the purge valve: it should hold vacuum closed, then click‑open under power. If it fails, swap it.
Inspect or smoke‑test the canister and CCV. Look for fuel-soaked charcoal or structural damage.
Check wiring/connectors for damage or corrosion, especially around the purge valve and CCV.
Consider pressure sensor or ECM only after ruling out all physical/electrical failures.

Why It Matters

Environmental compliance: EVAP systems are key to keeping vapors out of the air.
Improved gas mileage: escaped vapors = wasted fuel—sealing leaks helps maintain efficiency.
Smell and failed emissions tests: undetected EVAP issues can lead to pungent fuel odors and failed smog checks.

In short, most P0441 cases in Toyotas boil down to easy-to-fix problems: gas caps, hoses, purge valves, or canisters.

How to Diagnose the Toyota P0441 Code with a Scan Tool & Smoke Test

When your Toyota throws a P0441 Evaporative Emission Control System Incorrect Purge Flow, these are the practical steps pros take to pinpoint the culprit. Let’s talk through it step by step—like I’m right beside you in the garage.

1. Start with Your OBD‑II Scan Tool

Retrieve and clear codes: Hook up your OBD‑II scanner, record any stored EVAP codes (like P0441, P0440, P0446), then clear them.
Drive and re‑check: Take your Toyota for a drive loop—about 30–50 miles or until the Check Engine light returns. If P0441 comes back, you’re on the right track.

2. Check Live Data & Activate the Purge Valve

Monitor EVAP sensors on live data: Use the scan tool to “watch” the purge control valve or vacuum switch signal. The PCM should command it open under specific conditions.
Activate the purge valve manually: A bi-directional scan tool lets you command the purge valve on/off. You should hear a click and see the flow reading change.

3. Do a Visual & Physical Inspection

Gas cap: Ensure it’s tight, seals properly, and clicks firmly. Even slight leaks here can trigger P0441.
EVAP hoses: Look for cracks, brittleness, or disconnected lines—especially around the purge valve or charcoal canister. Even micro-cracks can disrupt proper flow.

4. Test the Purge Valve Itself

Resistance check: Remove the valve and use a multimeter—most Toyota purge valves read around 25–35 Ω.
Power test: Apply 12 V to see if it clicks (opens) and holds vacuum. No click? It’s likely shot.

5. Enter the Smoke Test

If scan tool data and visual checks don’t resolve it, the smoke test is the next best move:

How to setup:
1. Use the EVAP service port (usually a green Schrader valve under the hood).
2. Connect your smoke machine hose to this port.
3. With the engine off, introduce smoke. Pros recommend “engine off” so PCM purging doesn’t mask leaks.
4. Observe any escaping smoke—this pinpoints the leak.

6. Interpret the Results

Leak discovered: The smoking area reveals where hoses are leaking, where the purge or vent valve is sealing poorly, or where the charcoal canister may be permeable.
No external leaks? Consider internal issues like a dying charcoal canister or a malfunctioning purge/vent valve.

7. Wrap Up, Repair & Retest

Fix what you find: Replace cracked hoses, seal or swap the purge/vent valves, or install a new charcoal canister—depending on the smoke test results.
Clear the codes, road test, monitor live data again to ensure the P0441 doesn’t return. If it’s gone, you’re good to go.

Why the Scan + Smoke Combo Works So Well

Scan data alone is great for confirming the system is malfunctioning.
Visual checks spot obvious issues.
Smoke testing literally forces air (and smoke) through the system under mild pressure—you see exactly where vapors are escaping.
Together, these methods give a clear diagnosis without guessing or replacing parts randomly.

Bottom line

To nail down a Toyota P0441 Code:

Start with your scan tool to confirm and monitor the POR flow system.
Visually inspect gas cap, hoses, and valves.
Test purge valve resistance and activation.
Use a smoke test (engine off) via service port—this is the “mic-drop” of leak detection.
Fix what leaks, then clear codes and verify.

This method helps you avoid throwing parts at the issue blindly—ideal for DIYers and pros who appreciate a precise, efficient fix.

Step-by-Step Repair Guide for Toyota P0441 Code

1. Start with the Gas Cap

What to do: Remove the gas cap, inspect the rubber seal, and fillment indicator inside.
Why it matters: A worn or loose cap disrupts the EVAP system’s pressure balance. Often, tightening or replacing the cap can resolve the code.
How to replace: Use a genuine or high-quality OEM Toyota cap. Screw it on until you hear at least 3 clicks.

2. Visual Inspection of EVAP Hoses

Check for cracks and connections: Follow hoses from the fuel tank to the charcoal canister and purge valve.
What to look for: Dry, brittle hoses; broken clamps; disconnected lines.
Quick fix: Cut out damaged sections and insert new vacuum-rated hose. Secure with hose clamps.

3. Test or Replace the Purge Valve (VSV)

The purge valve is the part most likely to fail—but testing first prevents unnecessary replacements.

Locate it: Usually near the intake manifold or charcoal canister, accessible from the engine bay.
Remove and test:
- Clamp hoses, apply vacuum—should hold when off.
- Apply 12 V power—should click and open.
- You can also check resistance (should be 20‑40 Ω; check your repair manual).
Outcome:
- Valve holds vacuum and actuates properly? It’s likely good.
- Valve sticks or leaks vacuum? Replace it—usually $50–150.

4. Inspect the Charcoal Canister

What it does: Stores fuel vapors until they’re purged.
Symptoms of failure: Cracks, fuel saturation, internal build-up.
How to check: Inspect the canister, light shake test (sloshing = soak-up failure). Look for charcoal dust near purge valve indicating clogging.
Fixes:
- Minor cracks: epoxy or sealant.
- Major damage or clog: replace with OEM unit ($150–200+).

5. Perform a Smoke Test (for Hidden Leaks)

If hoses, cap, valve, and canister all check out, hidden leaks could be the culprit:

Smoke machine: Pressurize the EVAP system with smoke. Where smoke escapes reveals leaks.
DIY method: You can rent a smoke machine or get an adapter kit—well worth the investment for hard-to-find leaks.

6. Electrical Testing and Wiring Check

Sometimes, it’s not a part failure but poor wiring:

Check connectors: Ensure purge valve connector is clean, pins straight, wires intact.
Check continuity: Use a multimeter to confirm wiring from ECM to purge valve solenoid.
Common issue: Shorted or corroded circuits often mimic part failure.

7. Replace Faulty Parts & Reassemble

Replace failed components only—gas cap, hoses, VSV, canister.
Clear codes with OBD-II scanner.
Start the car and listen for purge valve clicking—should happen once engine is warm and idle.

8. Confirm Fix with Test Drive

Drive for ~30–60 miles with varied conditions—highway, stop-and-go.
The ECM typically runs readiness tests after several drive cycles.
Re-scan: if the code doesn’t return, you’ve succeeded.

Quick Reference Table

Step	Action	Expected Result
1	Tighten or replace gas cap	CEL clears if cap was the issue
2	Inspect & replace EVAP hoses	No visible leaks
3	Test / replace purge valve	Valve holds vacuum/closes open with voltage
4	Check charcoal canister	No cracks, no sloshing, clear vapor flow
5	Perform smoke test	No smoke leakage
6	Check wiring/connectors	Good continuity, no corrosion
7	Reinstall and clear codes	Purge valve clicking when warm
8	Test drive & re-scan codes	P0441 does not return

Why This Approach Works

Starts simple: Many P0441 fixes begin with tightening the gas cap.
Systematic isolation: We move from easy fixes to more involved diagnostics.
Uses OEM specs: Ensures parts match Toyota’s system requirements.
Covers wiring: Often overlooked, electrical faults can mimic mechanical failures .

Pro Tips

Always use Toyota OEM parts for purge valve and canister—aftermarket parts vary in quality.
Don’t over-tighten the gas cap—just snug until it ‘clicks’ a few times.
For hard-to-find leaks, visit a shop with a smoke machine—it’s usually the fastest solution.
After repairs, clear the code using a scanner; driving alone doesn’t reset it.

The Toyota P0441 code is usually a straightforward fix—start with the gas cap, inspect hoses, test the purge valve, and check the canister. If everything checks out, a smoke test or wiring inspection usually solves the problem. By following this guide, you’re equipped to diagnose, repair, and prevent this issue like a pro. Let me know if you want help sourcing parts or troubleshooting any specific Toyota model!

Estimated Repair Costs for Code P0441

Here’s a breakdown of typical repair costs for each potential issue:

Gas Cap Replacement: $0 – $50
Purge Valve Replacement: $50 – $150 (plus $50 – $100 labor)
EVAP Hose Replacement: $20 – $100 (depending on parts and labor)
Charcoal Canister: $150 – $300 (parts and labor included)
Smoke Test (Professional Diagnosis): $75 – $150

If you’re handy with tools, you might be able to fix this code for under $100 by replacing the gas cap or purge valve yourself.

When to Seek Professional Help or Use a Smoke Machine Test

If you’ve checked the gas cap and hoses and the code still returns, it’s time to call in a pro or use a smoke machine:

Smoke machines can pinpoint micro-leaks in hoses, valves, or the canister.
A Toyota-certified mechanic can also use advanced diagnostics to detect issues with ECM logic or obscure wiring problems.

It’s also smart to seek professional help if your vehicle fails emissions testing or shows multiple EVAP-related codes.

Toyota-Specific Technical Service Bulletins (TSBs)

Toyota has released Technical Service Bulletins (TSBs) for the P0441 code on various models. These bulletins are issued when Toyota finds a common issue and recommends a specific fix.

For example:

2003–2005 Corolla and Matrix: Toyota issued a TSB recommending replacement of the purge VSV and charcoal canister for persistent P0441 codes.
2004–2006 Toyota Camry and Solara: Similar guidance was issued for these models with updated parts to address purge valve issues.

If you suspect a recurring problem, ask your Toyota dealer to check for applicable TSBs using your VIN.

Preventive Maintenance Tips to Avoid P0441 Recurrence

Here’s how to avoid seeing that pesky check engine light again:

Always tighten the gas cap until you hear it click several times.
Inspect hoses regularly for cracks, especially if your car is over 10 years old.
Use OEM parts for purge valves and canisters—aftermarket parts may not meet Toyota’s specs.
Avoid overfilling your gas tank, which can flood the charcoal canister.
Use a fuel system cleaner periodically to keep valves and injectors clean.

Final Thoughts

The Toyota P0441 code might seem minor, but it’s part of your vehicle’s mission to reduce emissions and protect air quality. While you might not notice major performance issues, ignoring it can lead to bigger problems or even failed emissions tests.

With the right tools and a bit of know-how, many drivers can fix the issue at home. Start simple—check that gas cap—then work your way through diagnostics. And if you’re unsure or the problem keeps returning, a trip to a trusted Toyota mechanic can save you time and frustration.

Your Toyota has a reputation for reliability—keeping the EVAP system healthy helps it stay that way for years to come.
